Description

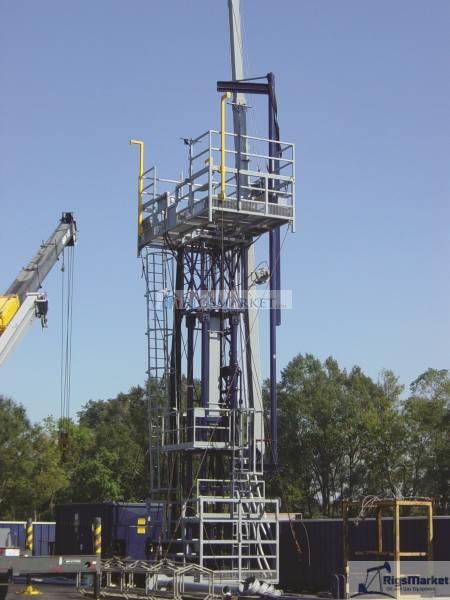

The 340K is a stand
–
alone snubbing unit
designed and custom built to perform
live or dead well interventions. It has
the capabilities to run tubing from 2 3/8″to 9 5/8″ and has 22,000 ft/lbs. rotary that allows it to take on tasks unheard of in the
snubbing industry such as drilling, milling out windows for side
tracks and side tracking.
Lift Capacity
Slip Bowls: 340,000 lbs. Capacity : 340,000 lbs.
Workover and Snubbing Capability
Fuel Tank Yes 990 gal.
Surface Pressure Capacity
Tongs 20,000 psi,
Jack: 10′ stroke, Torque tubes, Pipe guides
Work Window: 6′ with 14′ bore or 10′ with work basket
Mud System : 100-200 bbl. tank with mixing capabilities
Auxilary Equipment:Substructure with skidding package
More specs available upon request.
