Description

Hydra Rig packaged flameless nitrogen pumper rated at 180K SCFH 10K PSI,

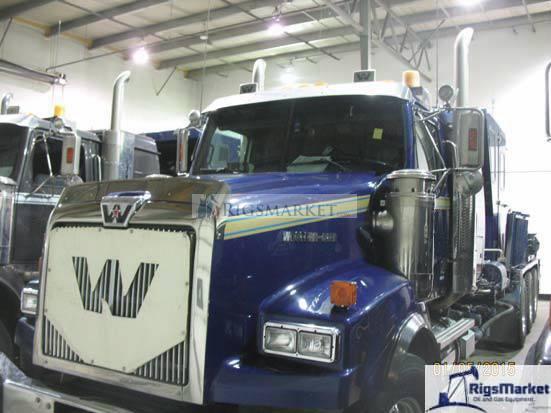

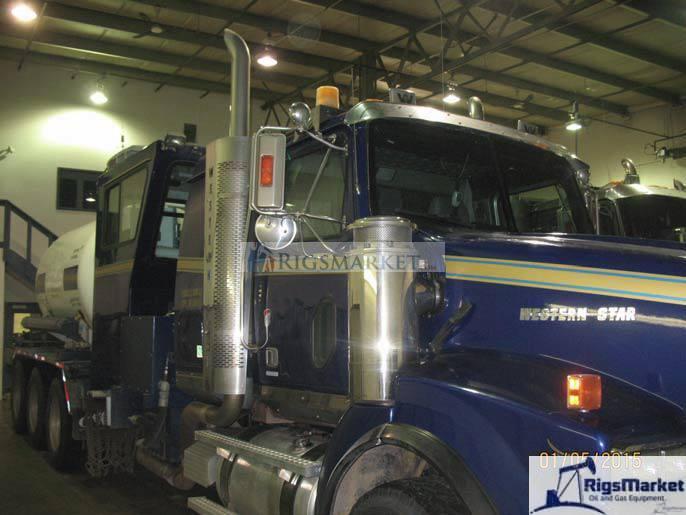

truck is a 2006 Western Star Model 4900SA
Constellation Series, tri-axle tractor W/ 36-
in sleeper. Powered by Cat Model C15
turbo charged diesel engine, 475 (tuned to
550-hp) @ 1800 rpm w/ Eaton Model
RTLO-18918B, 18-speed manual
transmission. Tractor has a air-ride
suspension equipped with air – operated
brakes & 445/65R22.5 tires on the front &
11R22.5 tires on the rear w/ aluminum-bud
wheels c/w high clearance rough terrain
chassis w/ lock-up on both axles.
Hydra Rig packaged flameless nitrogen
pumper rated at 180K SCFH 10K PSI.

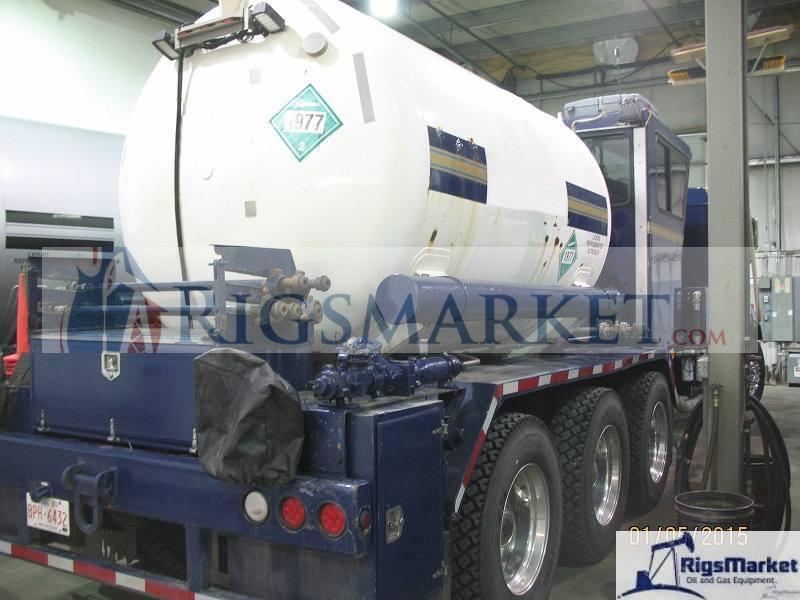

Wessington Cryogenics Model RTV 2000m
rated at 38-PSIG @ -320!F w/ TC spec 338
& a maximum working capacity of 11,335-
liters & 8,715-kg maximum product load.
Cain Industries heat recovery system w/
Corkin triple vane fluid pump facilitating;
heat coolant & boost.
Triplex lube pump unitized with M11 gear
motor powered by Namco drop box.
Secondary heat exchanger & exhaust
vaporizer pot (rated at 180K).
Bowden Fabrication deck-mounted
operators cab, 6-ft wide x 4-ft long w/
Alberta Instrument gauge cluster, printer &
4-way windows.
Opto DAS software system c/w console-
mounted computer
