Description

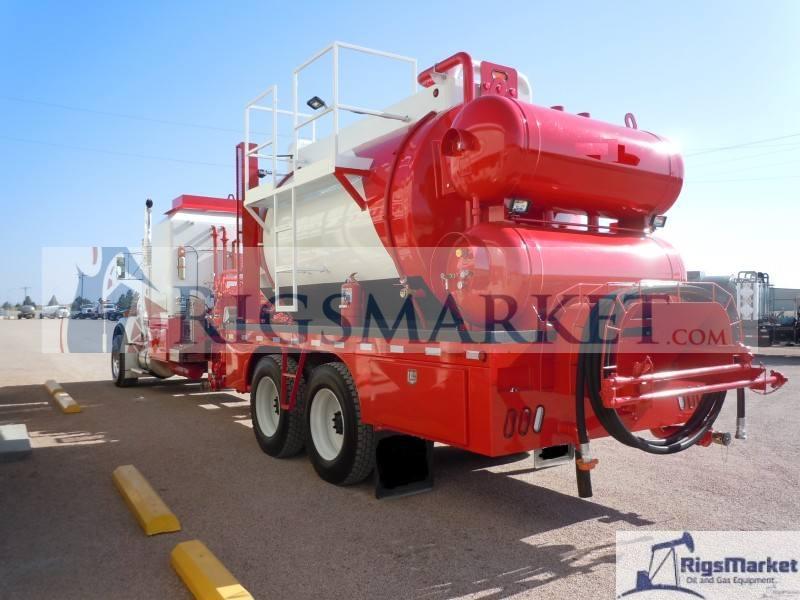

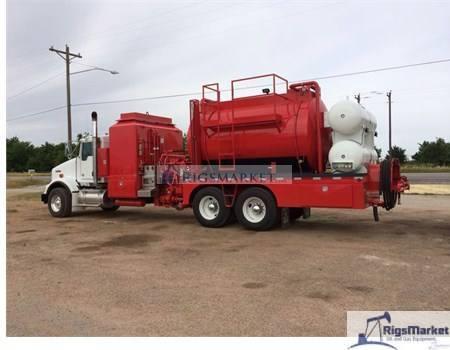

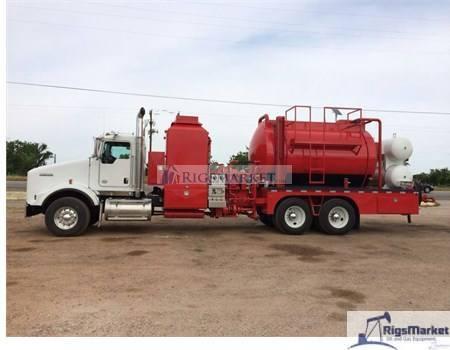

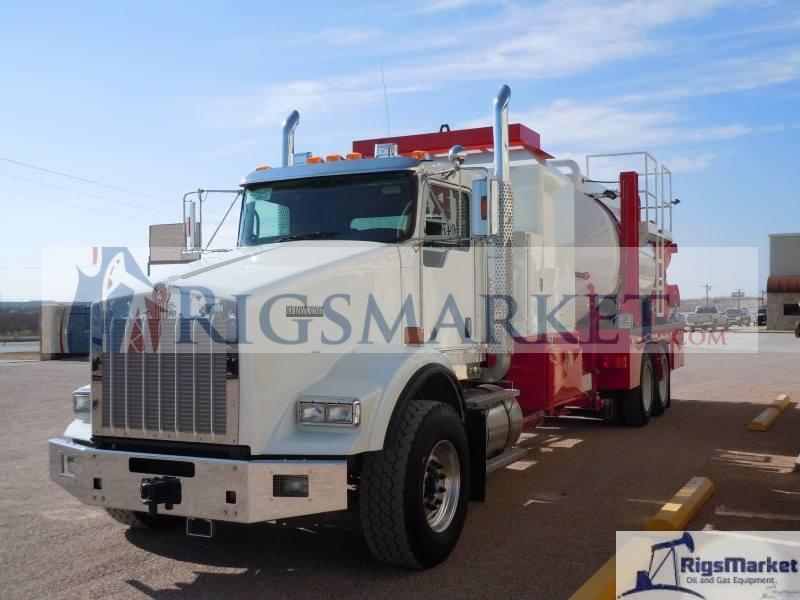

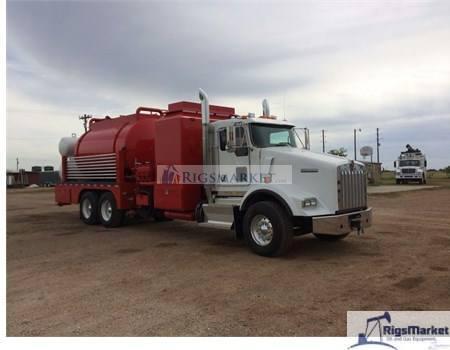

HOT OIL UNIT FULLY INTEGRATED AND MOUNTED ON A TRUCK CHASSIS CAB TRACT. 2013 KENWORTH

MODEL T800 AND / OR ITS EQUIVALENT IN OTHER MODEL. ACCESSORIES AND TOOLS INCLUDED.

• SPECIALLY DESIGNED FOR HEAVY OR ROUGH WORK. EQUIPPED AS FOLLOWS:
• Heat exchanger of a single step of 85 tubes 77 inches long and 2 inches in diameter; 30 of these tubes are finned type, for a moreefficient heat exchanger, finned coils 2 inches in diameter A106B steel, Schedule 40 Seamless, inspection door heater 20 inches (Tempered glass with window for high temperature), folding, located on the left side of the thermal equipment.
• Thermostatic control of heat burner. Safety pilot lights for ignition burners. Spark ignition pilot burner. Spray water heated by water. Gas vaporized heated by water. Pre-heater 1-inch propane burner box. Safety switch installed immediately stop the fuel line (LPG) generator and the internal combustion engine (Kill Switch).
• Alarm Gas Leak Detector. Automatic and manual operation installed to the inner side of the operation panel. 4 boxes of heavy tools included, without division, two on each side of the unit. Co2 system protection against fire in the heater, activated from the control panel. Two fire extinguishers 30 pounds, one on each side, dry chemical powder and valid warranty seal label.
