Description

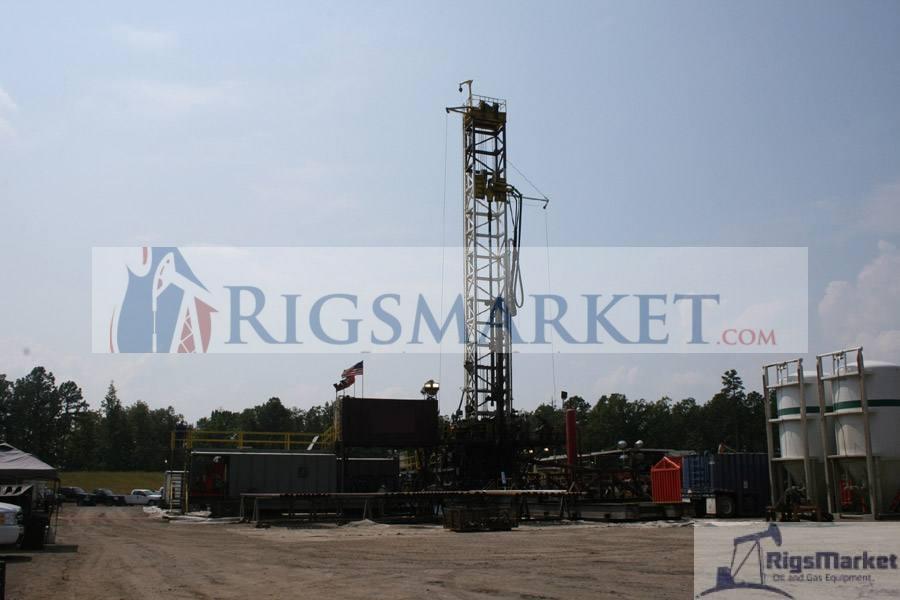

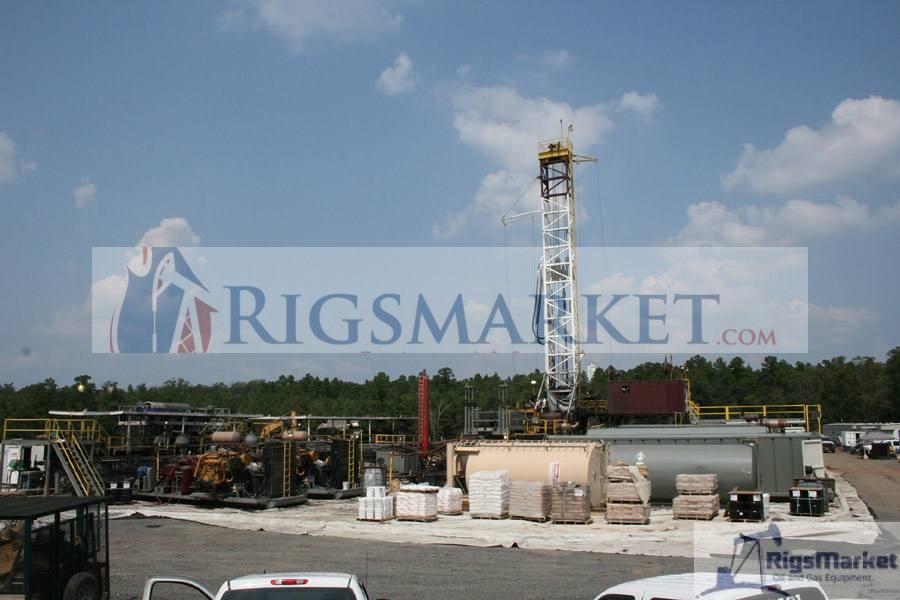

MD COWAN MD-525

DRAWWORKS

RIG TECH RT- 400B Drawworks, Maximum Pull 476,336#, 70,715# Single Line Pull, Grooved f/1-1/8” Drilling Line, w/EATON 424WCB2 Water Cooled Auxiliary Brake, Brake Cooling Package, p/b (2) CAT C15 Diesel Engines, 540-HP, Each w/Starter, Radiator, Gauges, Driller’s Controls

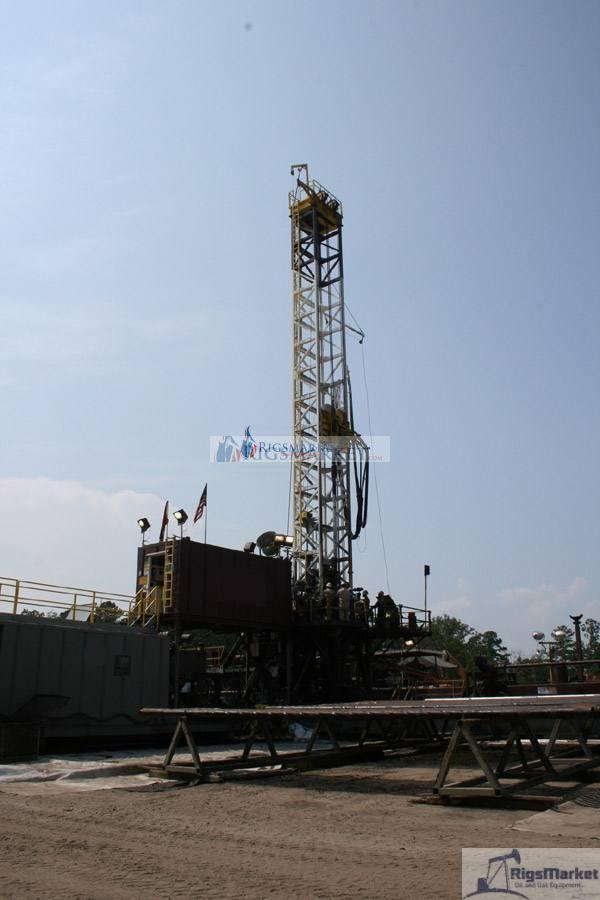

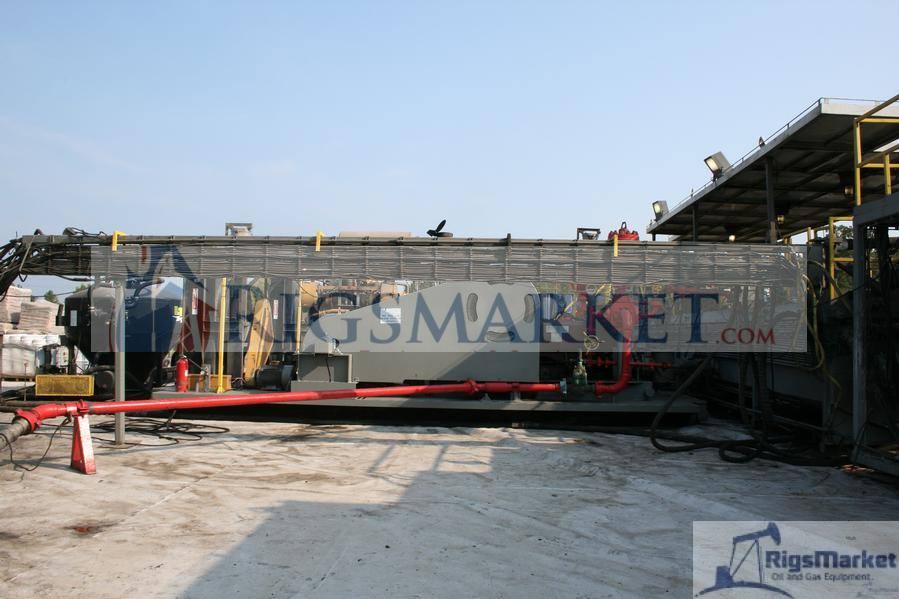

MAST

IDS 72’H Hydraulic Raised Mast, 500,000# Capacity. Climb Assist, Fall Arrest

All Above Mounted on Integrated Trailer Unit

SUBSTRUCTURE

IDS 12’2”H Substructure; 800,000# Capacity, w/Mechanized Pipe Handling System, Removable Blowout Preventer Handler, w/Stairs, Safety Rails, Skidded

Single Axis Bi-Directional Rig Skidding System, w/(8) Skid Beams, (21) Rig Mats

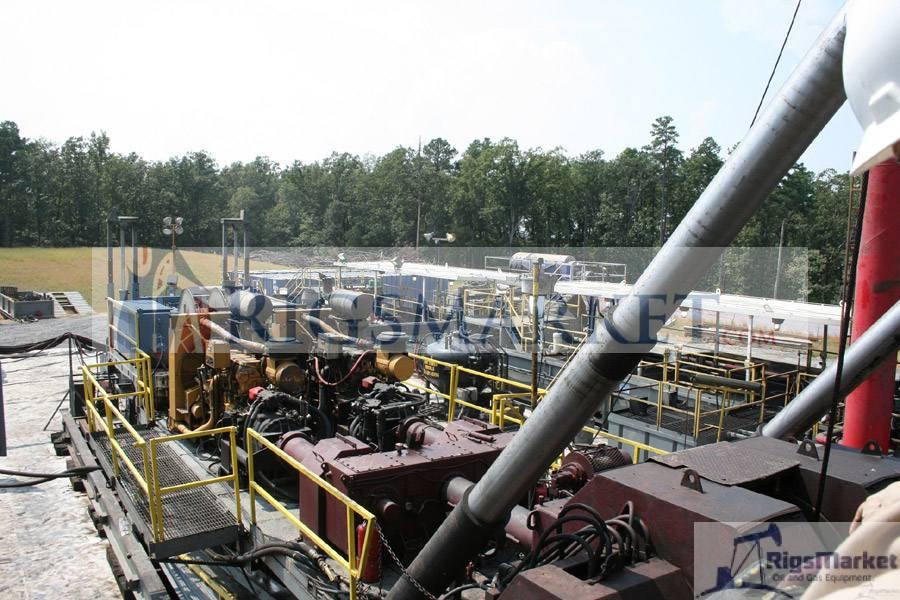

RIG POWER

(2) 355-KW Electric Generators, Each p/b CAT C15 Diesel Engine, 540-HP, w/Starter, Radiator, Gauges, Skidded

Rig Air Compressor, p/b Electric Motor

Above Mounted in Generator House, w/MCC Distribution, Wiring, Electrical Connections, Skidded

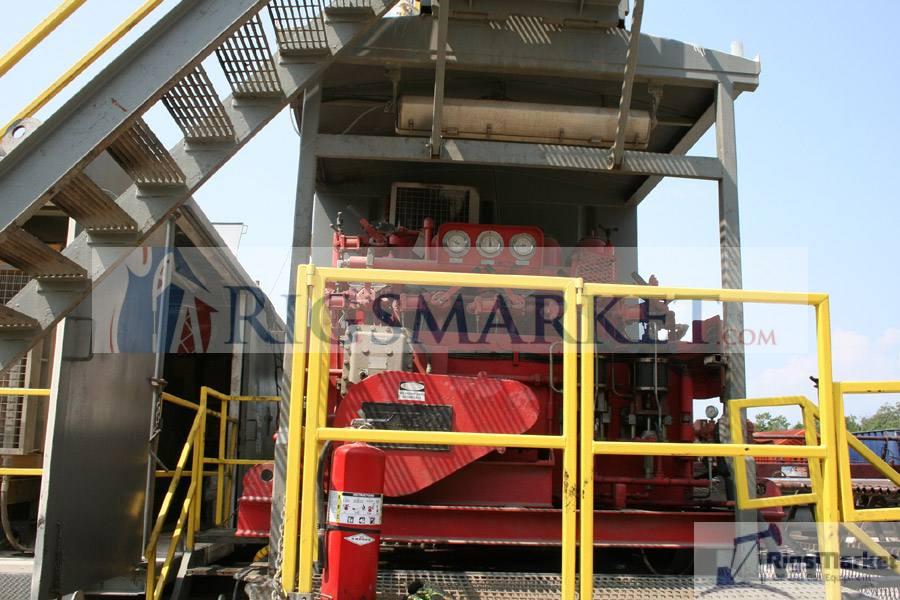

Hydraulic Power Unit, p/b CAT C18 Diesel Engine, 630-HP, w/Starter, Radiator, Gauges, Skidded

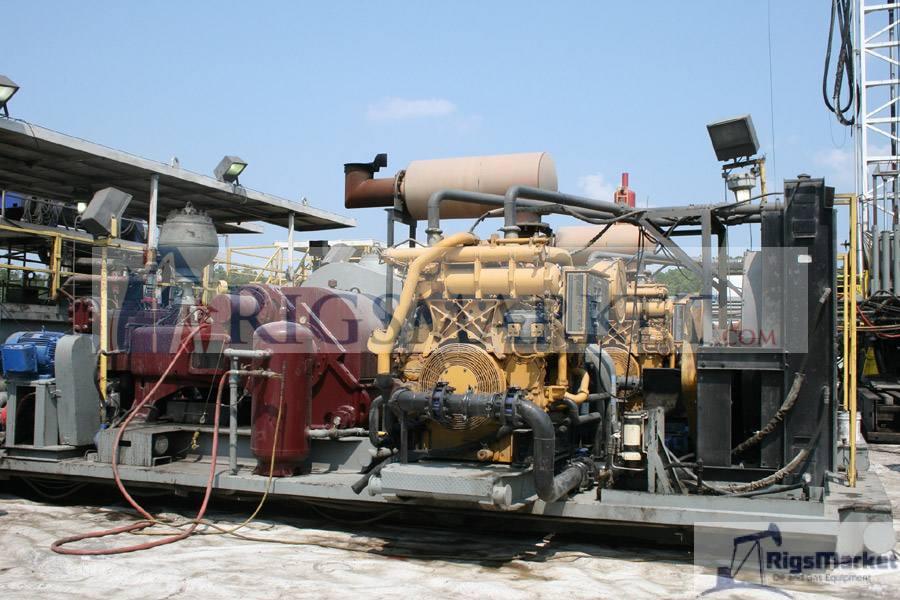

MUD PUMPS

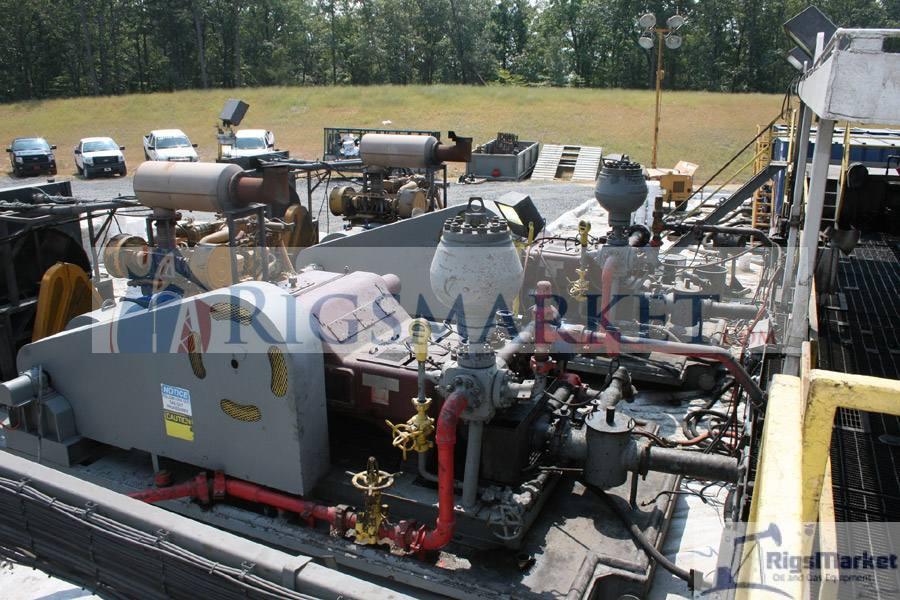

(2) GARDNER DENVER PZ-9 Triplex Mud Pumps, 1,000-HP, w/Steel Fluid Ends, Suction & Discharge Manifolds, Pulsation Dampener, Pressure Relief Valve, 6” x 5” x 14” Centrifugal Charging Pump, Each p/b CAT D3508 Diesel Engine, 900-HP, w/Starter, Radiator, Gauges, Skidded

ROTATING, TRAVELING EQUIPMENT

VENTURE TECH XK-250 Top Drive System, 250-Ton Capacity

MD COWAN 4-S-500 Split Banjo Style Traveling Block, w/(4) 30” Sheaves, Grooved f/1-1/8” Line

IDECO 27-1/2” Opening w/Cavin Air Powered Slip Assembly, p/b 800-HP Electric Motor

WELL CONTROL EQUIPMENT

TOWNSEND Type 90 11” 5,000# PSI Annular Blowout Preventer

TOWNSEND Type 82 11” 5,000# PSI Double Hydraulic Blowout Preventer, w/Rams

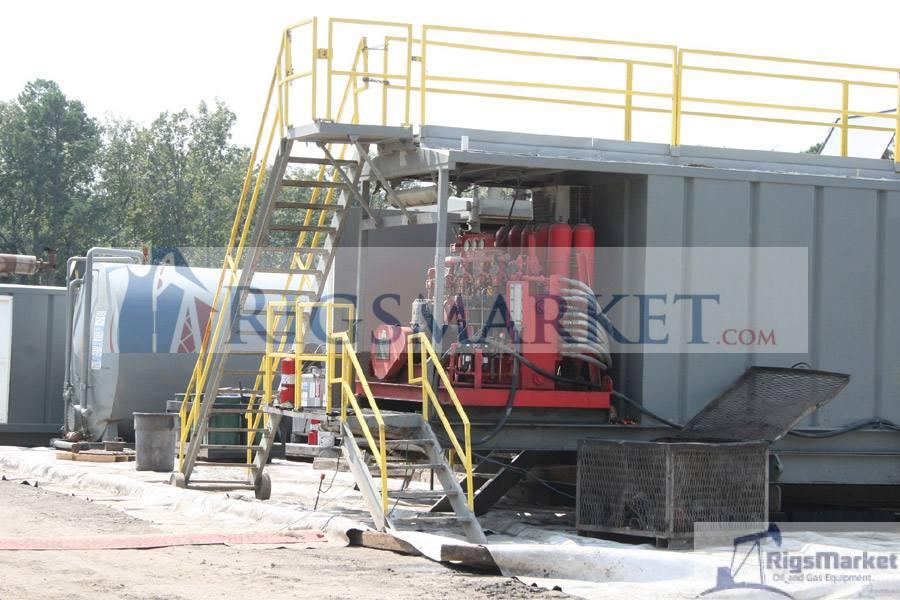

US OIL TOOL T-80-5 5-Station, 240-Gallon Blowout Preventer Closing Unit

4-1/16” x 4-1/16” 5,000# PSI Choke Manifold

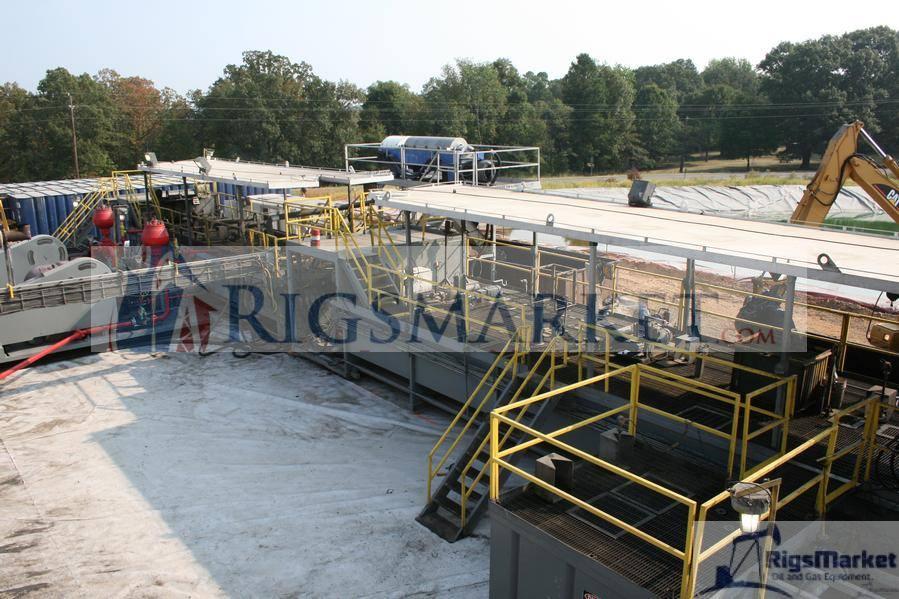

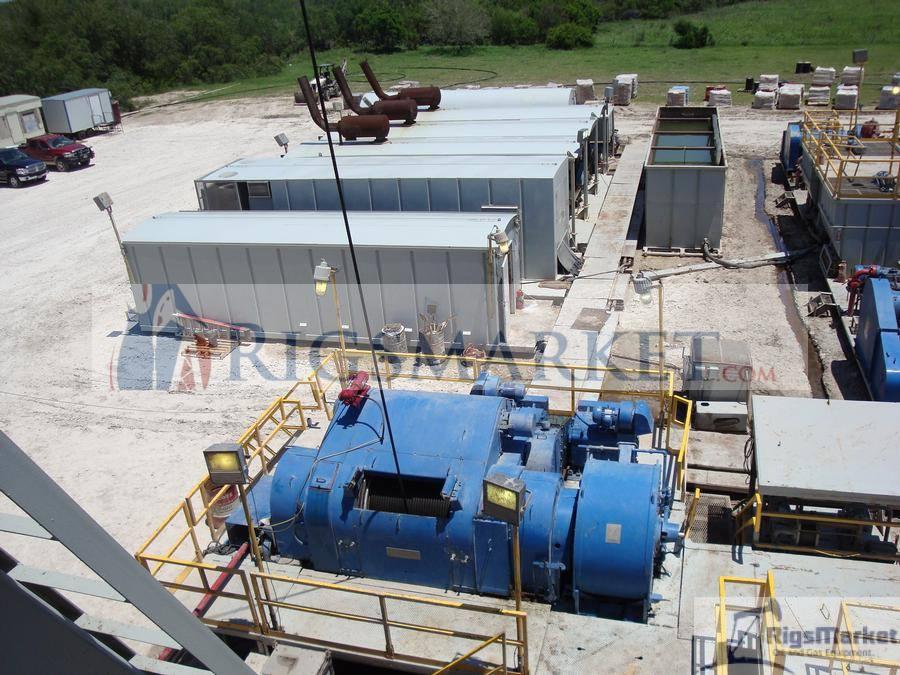

MUD SYSTEM

340-Barrel Capacity Mud Suction Tank, w/(3) Compartments, (2) Mud Agitators, Each p/b 10-HP Electric Motor, (2) 6” x 8” x 14” Vertical Mud Mixing Pumps, Each p/b 100-HP Electric Motor, Skidded

300-Barrel Capacity Mud Shaker Tank, w/(2) Compartments, (4) Mud Agitators, Each p/b 10-HP Electric Motor, Skidded

80-Barrel Capacity Trip Tank, w/(2) Compartments, w/3” x 4” x 13” Centrifugal Pump, p/b 30-HP Electric Motor, Skidded

(2) DERRICK FLC-504 Linear Motion Shale Shakers

OWI Desander, w/(2) 10” Cones, w/6” x 8” x 14” Desander Pump, p/b 100-HP Electric Motor

OWI Desilter, w/(16) 4” Cones, w/6” x 8” x 14” Desilter Pump, p/b 100-HP Electric Motor

30′ x 36” Mud Gas Separator, w/Internal Baffles

RIG HOUSE

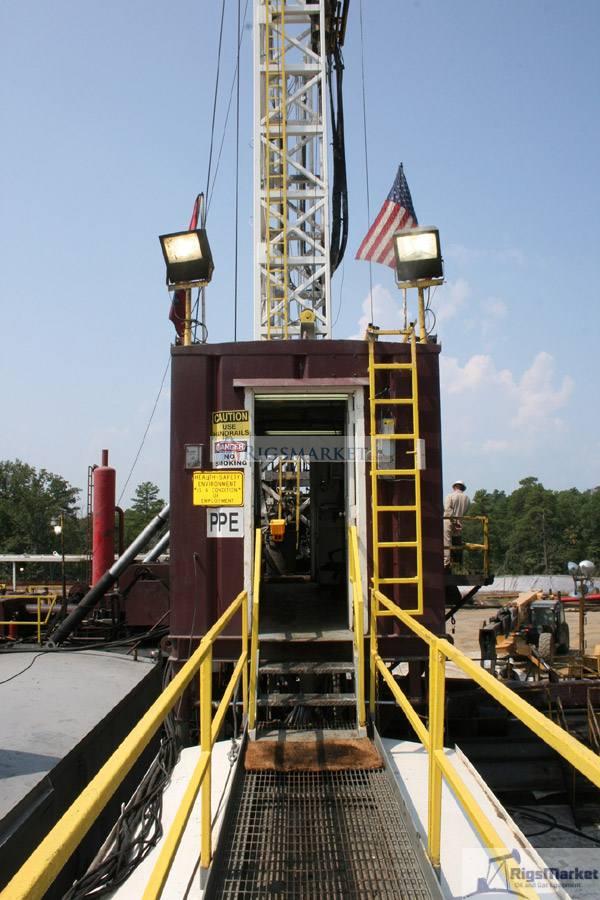

Driller’s Doghouse, Heater, Lights, Wiring, Electrical Connections, Skidded

WATER, FUEL TANKS

400-Barrel Water Storage Tank, Skidded

10,500-Gallon Fuel Tank, Skidded

AUXILIARY EQUIPMENT

Rotary Hose, Vibrator Hoses

US OIL TOOLS HT-75 Iron Roughneck

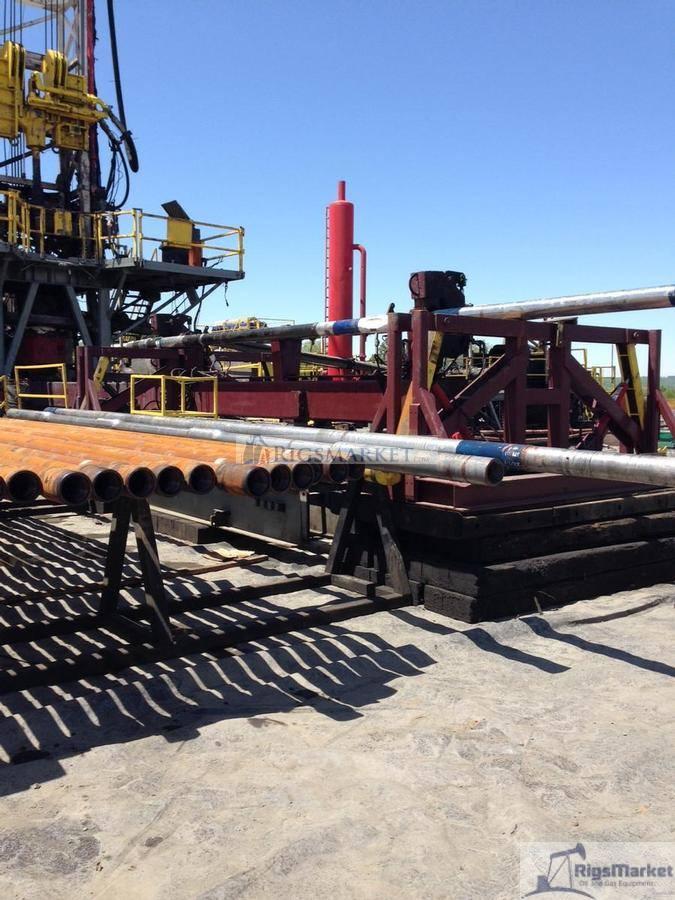

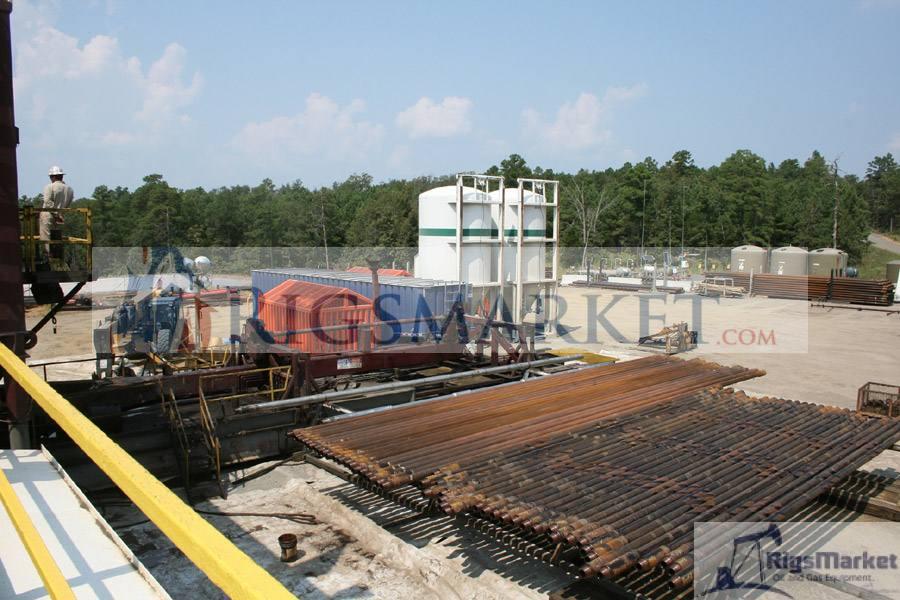

IDS C30-L15 Pipe Delivery Boom, 15,000# Capacity

Approximately 2,000’ of 1-1/8” Drilling Line, Electric Drilling Line Spooler

Miscellaneous Spare Parts, Hand Tools, Crossover Subs, Safety Equipment, Related Equipment
