Description

Classification

1400 HP Electric

Drilling Depth Capacity

18,000’ w/ 5” dp

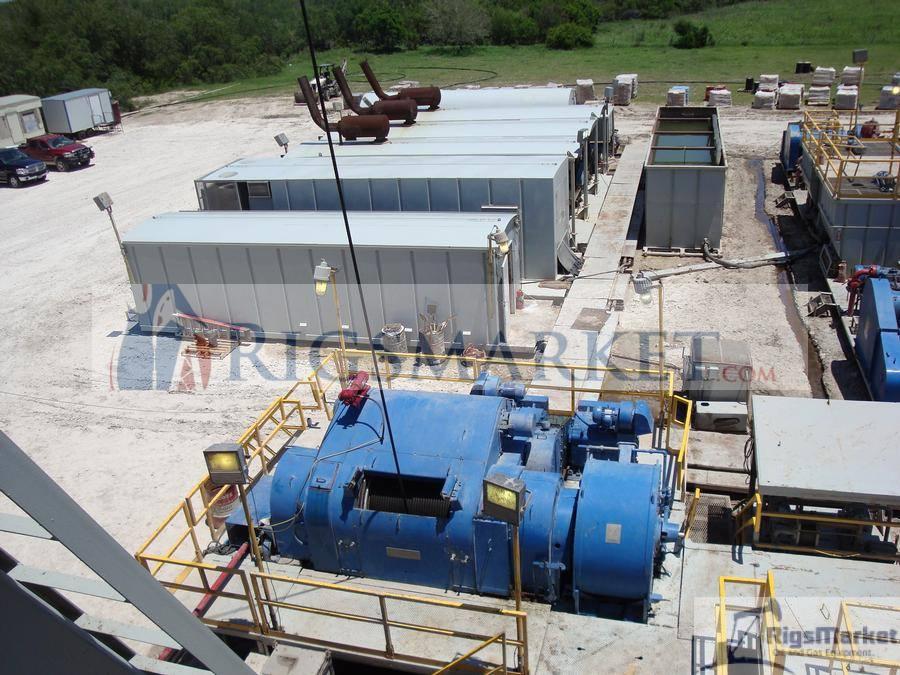

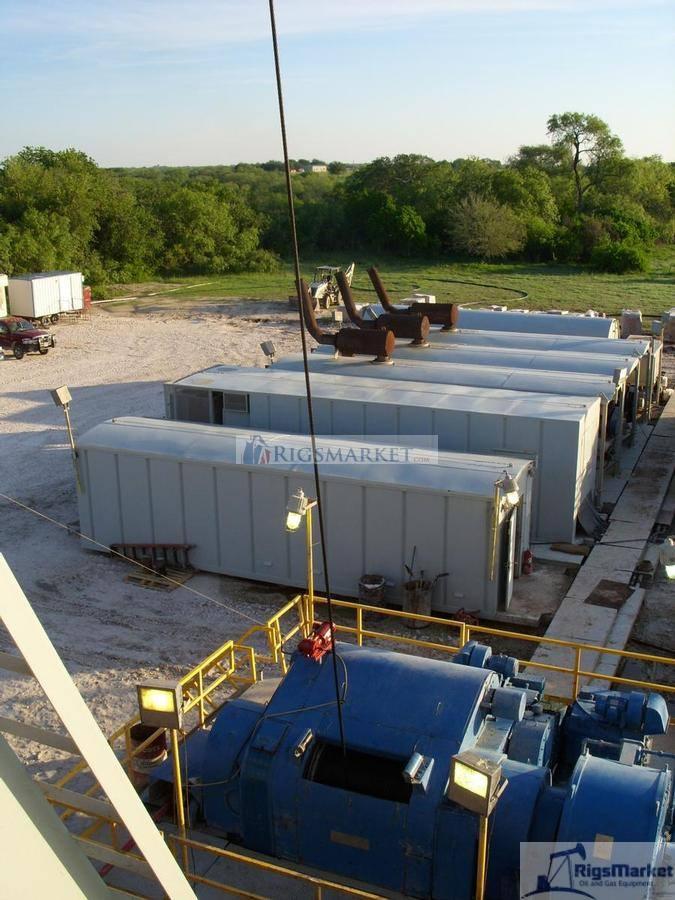

Power System

Three (3) CAT 3512 B diesel engines with Three (3) KATO 1365 KW AC generators and I.E.C. SCR I-Drive system Four (4) bays to power pumps, drawworks, lighting and hotel load

Draw Works

Oilwell 840-E with 7040 baylor brake powered by two (2) GE 752 traction motors

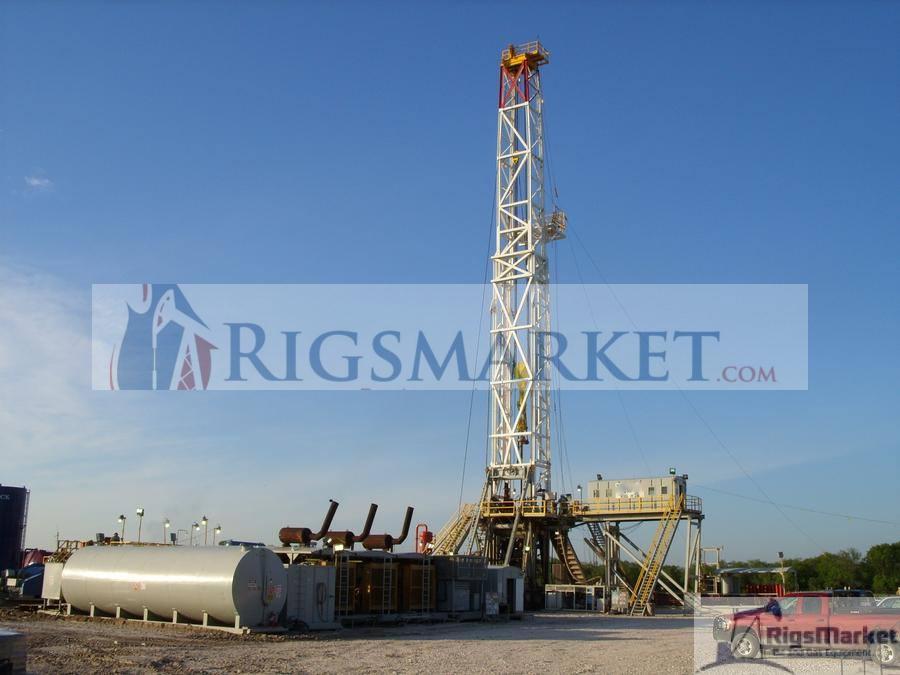

Mast

DSI 136′ Mast rated at 850,000 SHL

Drill Line

1-3/8″ EIPS

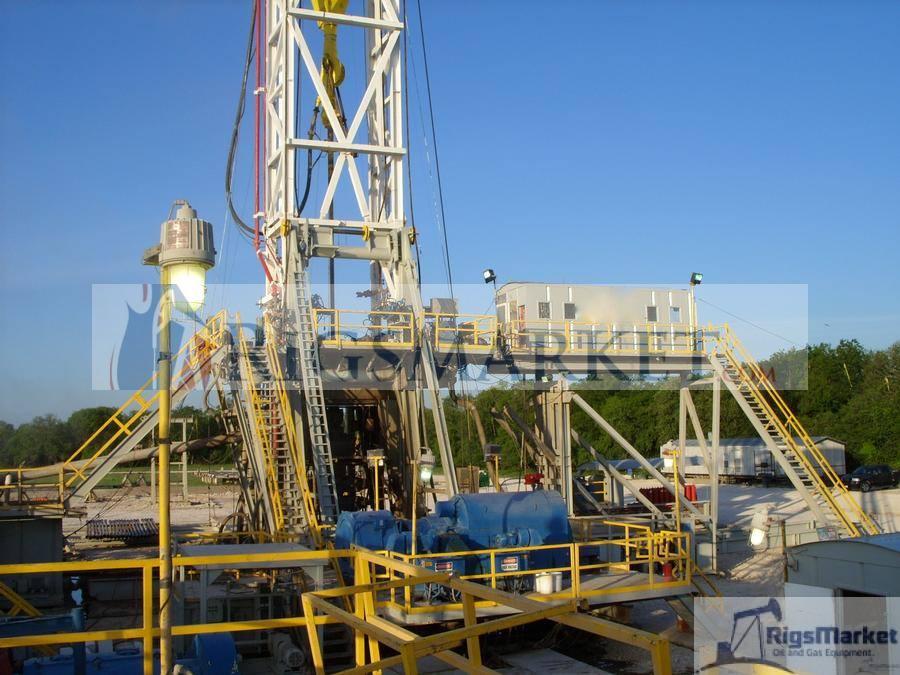

Substructure

DSI 25′ high self-elevating substructure with 20′ 7″ clear height under beams with a rated capacity casing capacity of 850,000 lb and 500,000 lb setback

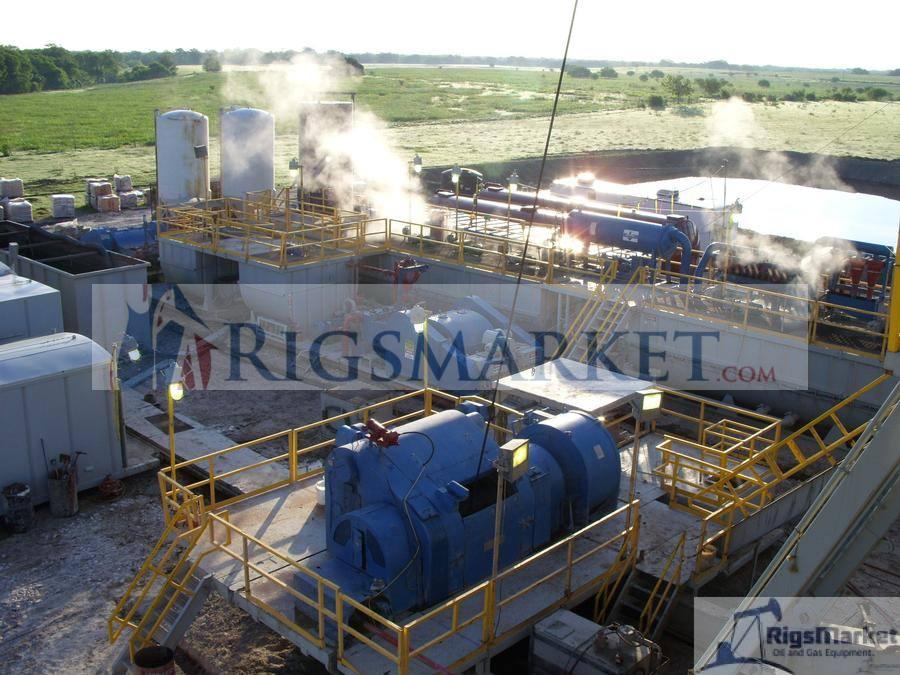

Mud Pumps

Two (2) Continental Emsco FB-1600 triplex pumps each rated at 1600 hp, each driven by two (2) GE 752 traction motor

Rotary

National 27-1/2″ Powered by one (1) GE 752 traction motor with Oilwell two speed gear box

Top Drive

NOV TDS-11 500 Ton AC

Block and Hook

Skytop 400 ton block
Swivel

Drill Pipe

15,500 ft. of 5” 19.50 #
Grade G-105 (500) joints

Drill Collars

(18) Drill Collars 6.25″ OD
(3) Drill Collars 8″ OD

Annular Preventer

Hydril 13-5/8 5000 psi WP

Ram Preventers

Cameron type U 13-5/8″ 10,000 psi WP double ram Cameron type U 13-5/8″ 10,000 psi WP single ram

Choke Manifold

4-1/16″ x 3-1/16″ 10,000 psi WP

Accumulator System

Koomey (6) station with remote control, 220 gal.

Mud System

Two (2) Tank 1100 BBL System Three (3) Derrick 513 HG shakers Derrick 2 cone desander Derrick 12 cone desilter Tri-Flo Vacuum Degasser

Auxillary Equipment

Toolpusher and crew quarters, One 500 BBL water tank, Automatic driller, Pipe spinner, NOV – Iron Roughneck ST 80-C One, (1) NOV Iron Roughneck Type ST80C
