Description

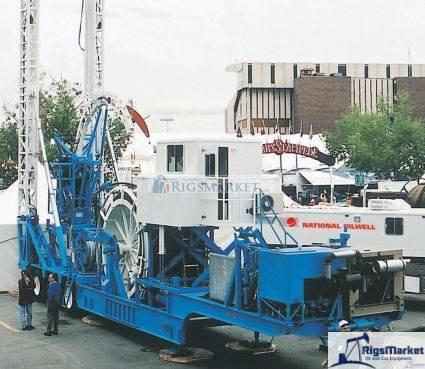

For sale is a used Model 295 COILED TUBING DRILLING UNIT,

Specs:

Rated Capacity of 1200 meters with 2 7/8 inch coiled tubing
Reel can accommodate 2 3/8 inch and 3 1/2 inch tubing

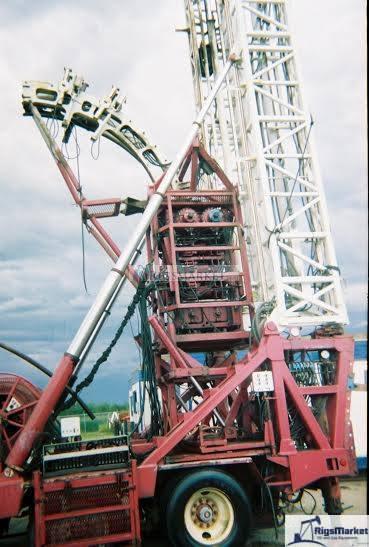

INJECTOR
National oil well RT100 100000 lb hoist 17800 lb snub force
Lifting structure
New van oil 2 7/8 side loading pack off
Pivoting and folding goose neck with hydraulic gates
Injector is completely rebuilt Stimline Services Inc
REEL
Level line with auto spooler
New van oil rotating joint
Pumping iron inside reel and 2” and 3” valves
1140 meters 2 7/8 tubing schedule 80 new condition
MUDPUMP
2004 D.P. 800 Weatherford triplex with new drive, 3412 cat powered (3412 dyno and load tested).
Selection of 5” and 5.5” liners with fluid end expendables
New 15 hp upright air compressor
High Pressure Air Equipment – 750 cfm, 2300 p.s.i. hurricane 4-stage compressor (blow coil)
New Magi Kist wash down
New pump house building
MUDTANK
New Brandt Mini Cobra flow line cleaner
New 40m3 custom mud tank with two 50hp mission magnum pumps
New electric chemical barrel
Two new mixing hoppers
BLOWOUT PREVENTION EQUIPMENT – NACE
New 7 1/16 N.E.I. annular
New 7 1/16 N.E.I. blind ram
Re-certified 7 1/16 Townsend pipe ram
Re-certified H.C.R., kill valves and hoses
Drilling spool
SAFETY TRAILER
Equipped and skidded for Bobcat
– 2 –
DRILLING RIG TRAILER
Tridem Peerless Page Trailer

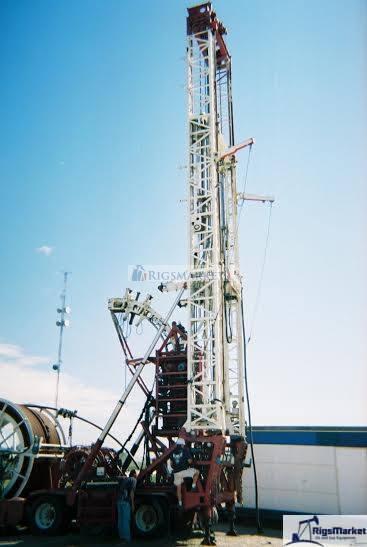

Mast structure
Hydraulic drawworks
Two trailer winches
Traverse motor and gear box assembly
Six hydraulic leveling jacks with 1 meter stroke
All winch and drilling line is new
CONTROL CAB
Hydraulic cab lift system
Air over hydraulic BOP remote panel
Pressure recording panel
Pason monitoring system
Injector function controls
Remote fluid pump controls
HYDRAULIC SYSTEM
Cummins deck engine
Hydraulic gear box
Hydraulic oil storage tank with high/low pressure filtering system and high temp/low level alarms
Hydraulic cooling system
Pro start heater for deck engine (re-serviced)
New Dennison and Sauer pumps
CATWALK SKID
Hydraulic lifting floor on rollers with adjusting V-door
Hydraulic winch
Hydraulic lifting beaver tail
Storage compartments
New pro-coat floor covering system
New stabbing and inside BOP valves with certified drill collar lifting subs
COMBINATION BUILDING
New building with fuel and water storage, tool house, change shack, gen set (325 kVa), 3306 cat (dyno and load tested) and new N.E.I accumulator (4 station, 40 gal.)
DRILL COLLARS
Four new 4 ¾” with pickup subs
RIG
Rig is seven compact loads for quick and efficient move times and expense
Tanks, B.O.P.’s, buildings and rig are plumbed in and functioning
This coil tubing drilling rig is basically new and is best used with a casing pre-set rig
