Description

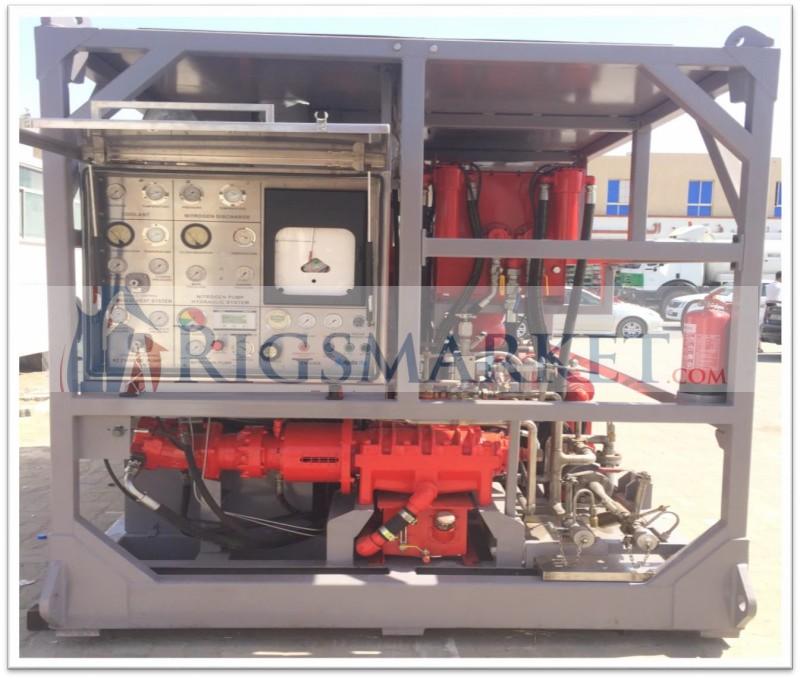

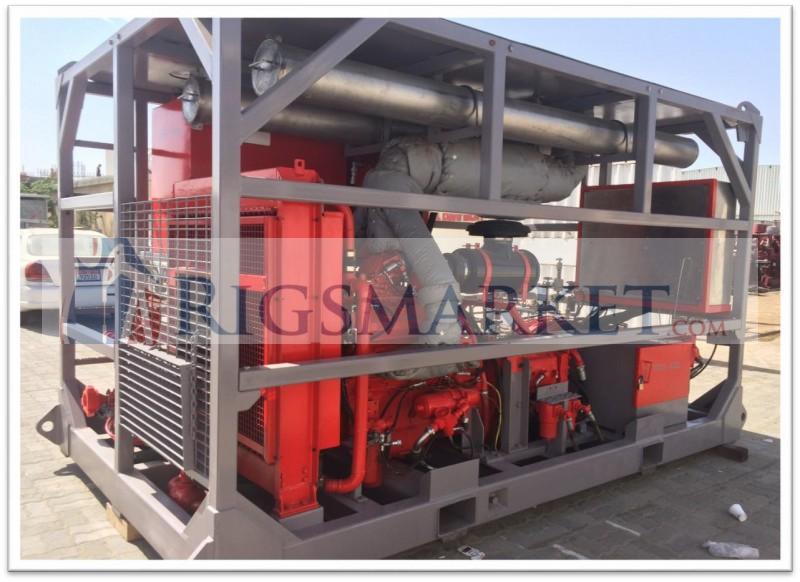

Hydra Rig 180K Skid Nitrogen Pumping Unit with the following weight and Dimensions:

Height 2.54 m (8.3 ft.)
Length 3.4 m (11 ft.)
Width 2.4 m (7.9 ft.)
Weight 78,69 Kg (17,360 lb.)

Capacities:

Nitrogen System:

Maximum Unit Working Pressure 10,000 psi (69MPA)
Maximum Flow Rate 180,000 SCFH (85.4 SCMM)
Centrifugal Boost Pump 111.3 lpm (29.4 gpm)

Triplex Pump and cold ends:
Pump Model NOV Hydra Rig 200 4N200000
Maximum Speed 975 rpm
Maximum Rod Load 73,500 pounds
Cold End Model NOV Hydra Rig 2LD000044
Cold End Bore 1.625 in. (4.1 cm)
Cold End Stroke 1.375 in. (3.5 cm)
Cold End Working Pressure 10,000 psi (69 MPa)
Flow Rates (Maximum) 180,000 SCFH (85.4 SCMM)

Vaporizer:

Model NOV Hydra Rig 4N490035
Working Pressure 15,000 Psi (103.4 MPa)
Coolant Discharge Temperature 70 F (21 C) at full rate

Engine:

Engine Model Detroit Diesel series 71
Engine Horsepower 550 HP@ 2,100 RPM

Fluids and Lubricants:

Detroit 60 Series Engine Oil Supplied with BOSS EXQ 15W40SAE
Engine Coolant BOSS universal AntiFreeze
Hydraulic Oil (Reservoir 50 Gallons) BOSS HVI 68
Pump Drive BOSS Lube 75W90 (6L)
Triplex Gearbox BOSS 80W90 GL-5 (2L)
Triplex Pump warm End Lube Oil BOSS CD 50 Synthetic Transmission Fluid (52L)

Hydraulics Pumps and Motors:

Pump Function/ description Flow
N2 Boost Pump Drive Pump 38 lpm (10 gpm)
Triplex Lube Pump Drive 68.1 lpm (18 gpm)
Coolant Pump Drive (Nitrogen System) 60.6 lpm (16 gpm)
Triplex Drive Motor 336 lpm (88 gpm)
