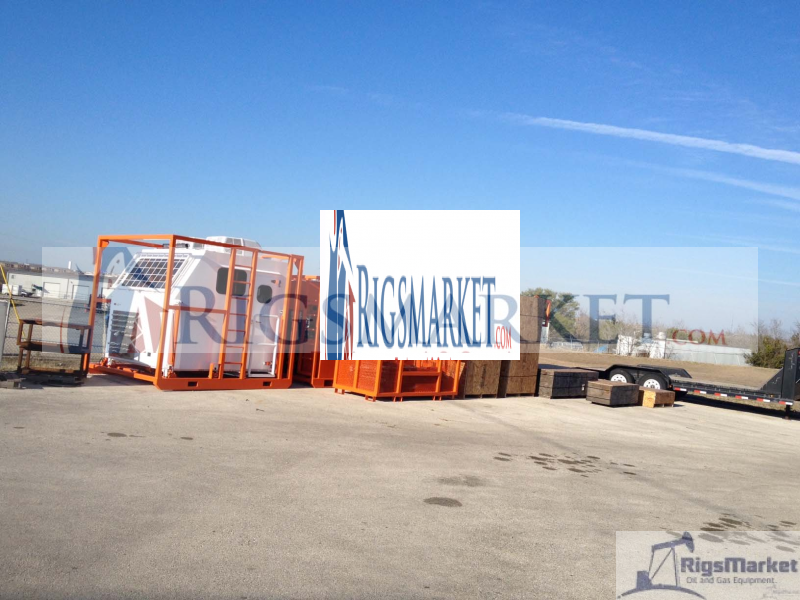

Coiled Tubing Unit. Skid mounted. 60K Injector.

Coiled Tubing Unit. Skid mounted. 60K Injector.

SKU: 39027 Category:

Description

For sale is a used Coiled Tubing Unit. Skid mounted. 60K Injector;

Hydra Rig Power Pack driven by Detroit series 60 – engine 340 HP, including:
1. Radiator
2. Hydraulic Cooler
3. Muffler – Spark Arrestor
4. Over Speed Shut Down
5. Low Oil Pressure Over Heat
6. New Hose – Fitting and Gauges
7. Hydraulic Pumps
8. Engine Control Panel
9. Hydraulic Panel
10. Snaptite/Quick Connector

Injector 60K made by HPT
1. Drive Shaft
2. Chain and Coated Sprocket 1 ½”-1 ¾”
3. Hydraulic Cylinders
4. Shaft Bearings
5. Gooseneck Rollers 72”
6. New Hoses and fittings

Tubing Reel:
1. New Hydraulic Motor
2. New Sprocket and Chain
3. New Hydraulic Cylinders
4. New High Pressure Manifold
5. New rotating swivel
6. New Level Wind
7. New Depth Counter
8. New Lifting Frame

Hydra Rig Jack-Up Control house:
1. Self-contained Steel enclosed
2. Rear Entrance Door
a. Three observation windows, one on each side and a front observation window with a protection shield
b. Operators Swivel console seat
c. Customer Bench
d. HVAC System
e. Interior and Exterior lightning
3. Operator’s Console complete with all necessary instrumentation for operating injector, tubing reel, hose reels, power pack and any other equipment necessary for operating the CT unit.
4. Designed with Hydraulic Scissor Lifting Frame Base
5. Adjustable Entry Ladder

Gooseneck:
1. Standard 62” fold down gooseneck
2. The mount allows an easy positioning of the gooseneck to provide the alignment of the tubing in the center of the injector.

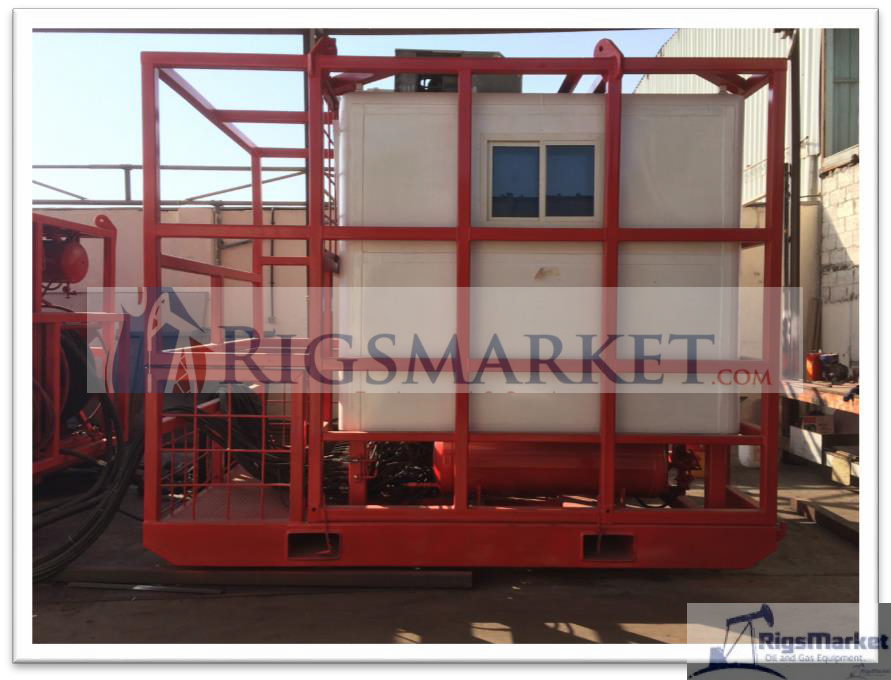

Hydra Rig Jack-up Control House:
Weight: 15,000 LBS

Dimensions:
Height is equal to 102.00 in
Length is equal to 150.00 in
Width is equal to 96.00 in

Features:
1. Self-contained Steel enclosed
2. Rear Entrance Door
3. Three observation windows, one on each side and a front observation window with a protection shield
4. Operators Swivel console seat
5. Customer Bench
6. HVAC System
7. Interior and Exterior lightning
8. Operator’s Console complete with all necessary instrumentation for operating injector, tubing reel, hose reels, power pack and any other equipment necessary for operating the CT unit.
9. Designed with Hydraulic Scissor Lifting Frame Base
10. Adjustable Entry Ladder

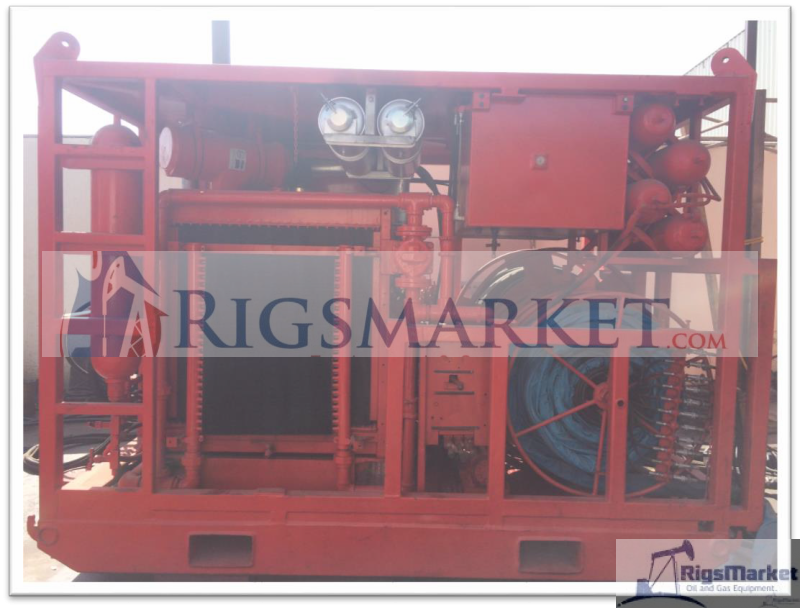

Hydra Rig Power Unit:
Weight: 15,000 LBS

Dimensions:
Height is equal to 102.00 in
Length is equal to 150.00 in
Width is equal to 96.00 in
The power pack has a Detroit 60 series (240 BHP) diesel engine; with a quadruple pump drive mounted directly to the flywheel housing. The power pack is skid mounted and has a four-point lift protective frame.

Power Pack Features:
1. Throttle for speed control.
2. Manual and air operate engine kill as well as emergency kill for fuel and air shutoff.
3. Oil pressure, water temperature, air pressure, and engine tachometer gauges.
4. Engine contains and emergency shutdown system for over temperature and loss of oil pressure.
5. Diesel lubricated air starter and a 30-gallon air reservoir for starting. The reservoir has a water drain in addition to a dryer for air controls.
6. A compressor for charging the air reservoir and operating the air controls.
7. Heavy-duty radiator is supplied for extreme environment operation.
8. Circuits for injector drive, reel drive, level wind, Bop, and control house supply are provided.
9. 30-gallon accumulator is provided for BOP, Stripper, and house backup.
10. The injector drive utilizes a Denison variable displacement axial piston closed loop pump rated at 3000 PSI.
11. An air to oil heat exchanger is provided for hydraulic oil cooling
12. Capacity for 95 gallon for diesel fuel. Tank has a level indicator, fuel shutoff valve, and a fuel drain.
13. Hydraulic reservoir with a capacity of 110 gallons. Suction strainers and return fluid filtering with popup visual filter change indicator. Reservoir has a removable cleanout cover and drain. All outlets have shutoff valves. Reservoir is equipped with a sight level gauge, temperature gauge, and a breathable filling cap.
14. An access ladder is provided for filling and inspection purposes.

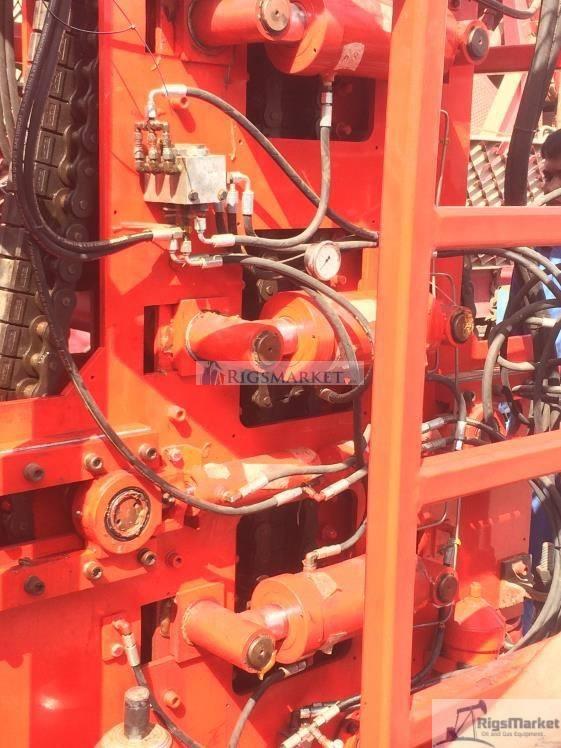

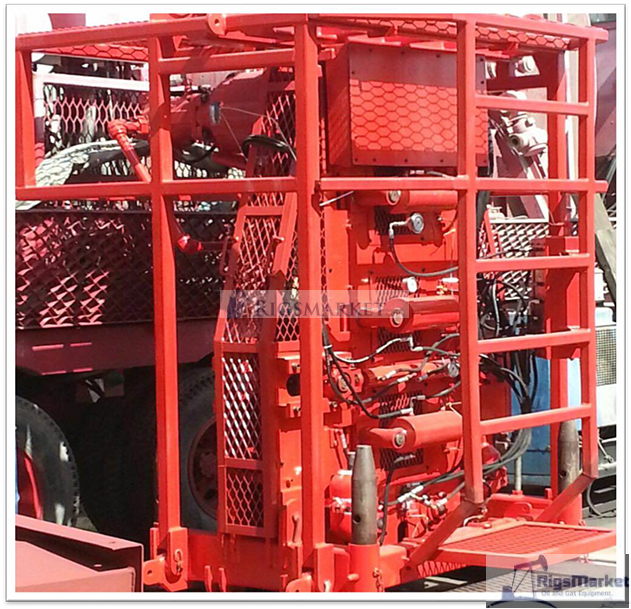

HPT 60K injector Head:
Weights:

Injector 8365 LBS (3794 KG)
With 72” Rad Guide Arch 8800 LBS (3992 KG)

Dimensions:

Height: 106.75 in (271 cm)
Length: 67.50 in (171.5 cm)
Width: 71.75 in (182 cm)

Capacities:

Accumulator (Traction Cylinders):
750 PSIG N2 Pre-Charge 1 QT. (.95 L)
Accumulator (outside tension Cylinders)
250 PSIG N2 Pre-Charge 1 QT (.95 L)

Specifications:
Speed (with Engine @ 2100 RPM and 70 GPM)
High Speed (Min. Displacement) 200 Ft/min (61M/Min) Low Speed (Max. Displacement) 61 Ft/Min (19 M/Min)

Description Pull / Push Pressure Required
Emergency Pull 80,000 lbf. Pull 5000 psig
Rated Pull 60,000 lbf. Pull 3700 psig
Pull at Minimum Displacement (2.972 in^3/rev) 25,000 lbf. Pull 5000 psig
Snub Load at Full Motor Displacement 20,000 lbf. Pull 1250 psig
Snub Load at Minimum Motor Displacement (2.972 in^3/rev) 20,000 lbf. Pull 4000 psig

Pressure:

Traction:

Minimum recommended hydraulic pressure 500 psig
Maximum recommended hydraulic pressure 1500 psig
Maximum emergency hydraulic pressure 3000 psig

Tension:

Minimum recommended chain tension pressure 100psig
Minimum chain tension pressure (Snubbing max. load) 500 psig

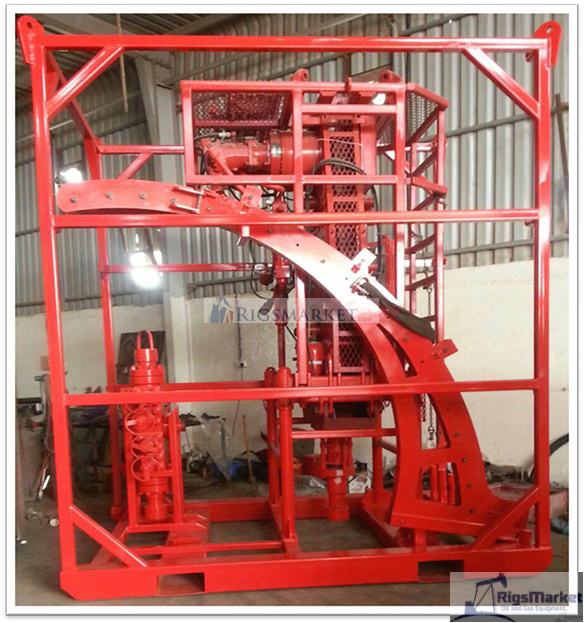

Transfer skid

The transfer skid is made to carry the coiled tubing components, which are:
1. Injector
2. BOP
3. Gooseneck
4. Stuffing box
5. Storage box and tool box

The transfer skid has four lifting points and a ladder.

Blow Out Preventer (BOP) and Stripper

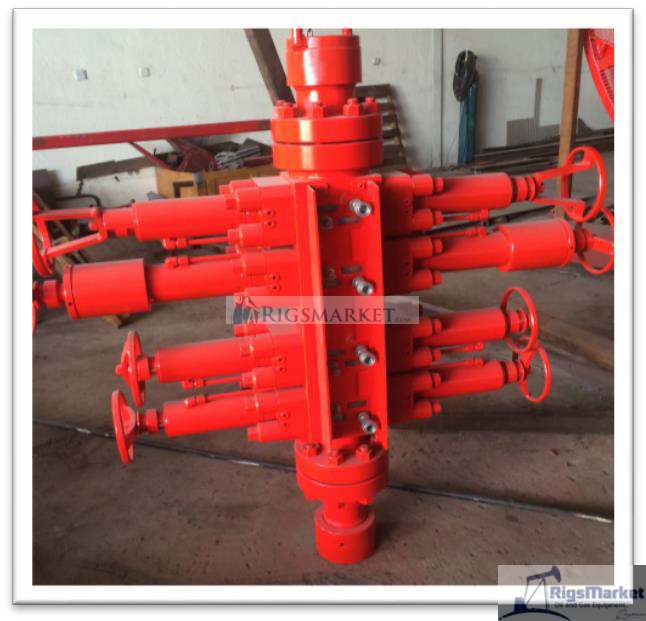

TOT 3.06” QUAD BOP:

1. 3 1/16” Thru bore Quad
2. Working Pressure: 10,000 PSI
3. Tested Pressure: 15,000 PSI
4. 3 1/16” – 10,000 PSI Flanged Top & Bottom
5. Equalizing Valve
6. Each Ram has a positioning indicator
7. Hydraulically operated

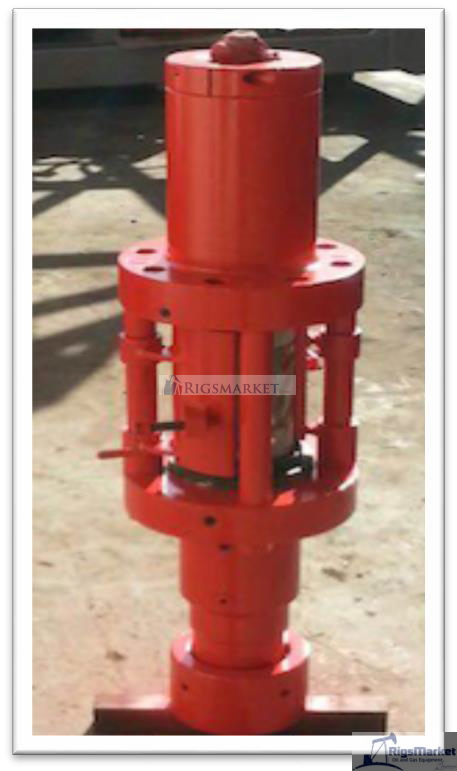

TOT 3.06” Side Door Stripper:
1. 3 1/16” Thru bore Max
2. Working Pressure: 10,000 PSI
3. Tested Pressure: 15,000 PSI
4. Suitable for H2S
5. Hydraulically operated
